OUR MISSION

We deploy decades of expertise delivering custom mechanisms in accelerated timeframes, focusing on system-level efficiencies and design precision.

APPROACH

What We Do

Custom space mechanisms

that meet the needs of a specific spacecraft.

Incorporates state-of-art component technologies

Early adopters of now-standard
space drivetrain components and manufacturing processes.

Space-qualify core building blocks

Drivetrains, seals, and joints – and form them into custom systems (ex: robotic arms, multi-DOF gimbals, pressure control valves).

We meet tight procurement schedules, and highly value quality project management and open communication and with our commercial & government customers.AI And Robotics

In-house production & assembly

Efficiency → accuracy → lifetime

Design

  • High accuracy & resolution drivetrain
  • Dual encoders control system
  • Minimum number of parts
  • Survives launch loads
  • Survives space: low friction, thermal dissipation
  • As-needed built-in electronics
  • MTBF and qual test results provided at CDR
Contact Us

PRIOR WORK
& CLOSE ASSOCIATES

Passed numerous test requirements (vibe/acoustic qualification on a Falcon Heavy, DO-160, etc.)

Successful delivery in regulated & ruggedized industries: space, defense, industrial, medical.

Maintains close relationships with key space component suppliers.

CTO’s prior Intellectual Property is the basis for leading space motor component providers.

MOTION DYNAMIX

Relevant Prior Work

  • High precision surgical robot for Johnson & Johnson (eye surgery).

  • BrushlessDCmotorwith0.004-degreeaccuracyand18-bitres

  • Hollow shaft for cabling

  • Dualencoders

  • Harmonicdrivewithzerobacklash

  • Ultra-high2-axisaccuracyandspeed
  • 10,000 deg/second2 acceleration
  • Designed for long distance scanning
  • Withstands significant temperature variation

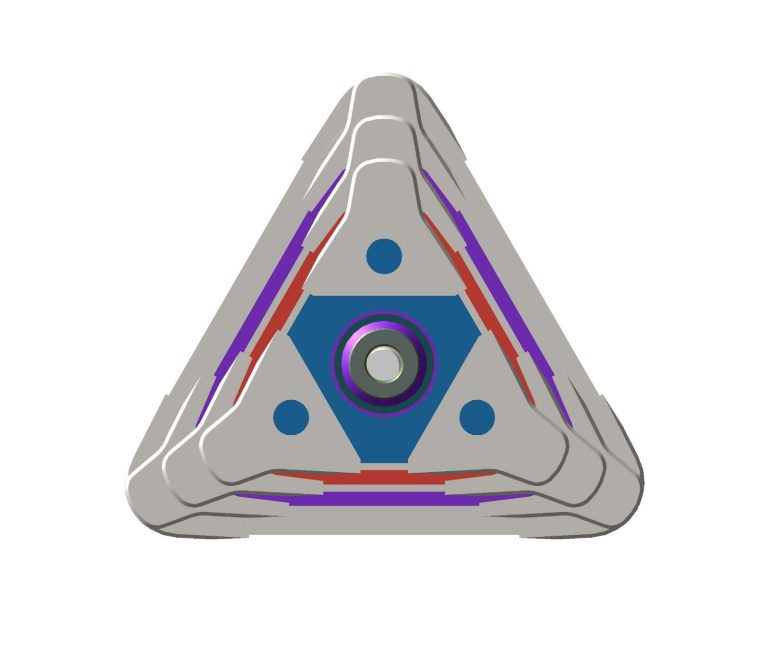

  • Flexible CMG design for CubeSats
  • High efficiency, fully controlled movement
  • Ceramic hybrid bearings to increase lifetime
  • Order of magnitude reduction in mass
  • Novel control concept designs in work
  • 6U TSL Satellite designed to scan for bushfires
  • Ultra-low friction bearings
  • Uses CMG to move scanner – motor installed on shaft to compensate for friction in the bearings, imparts no motion on the bus

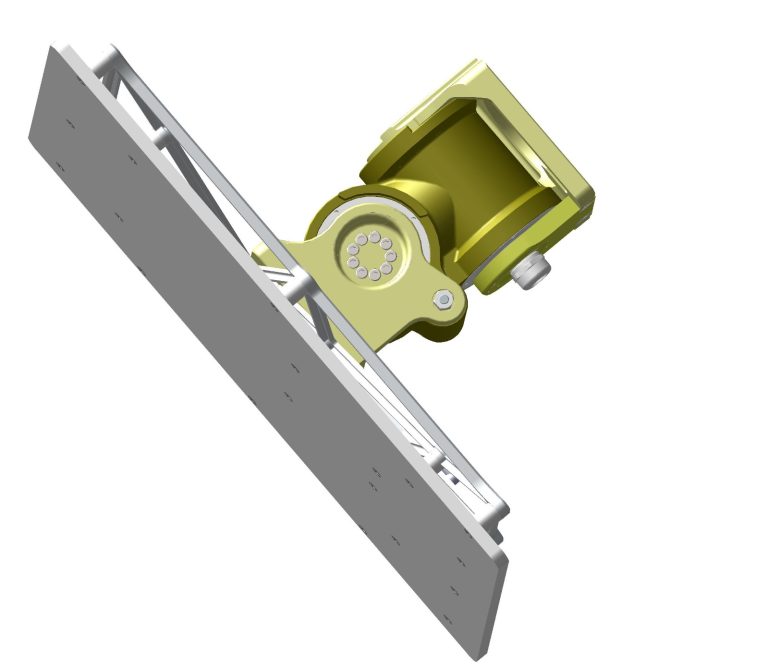

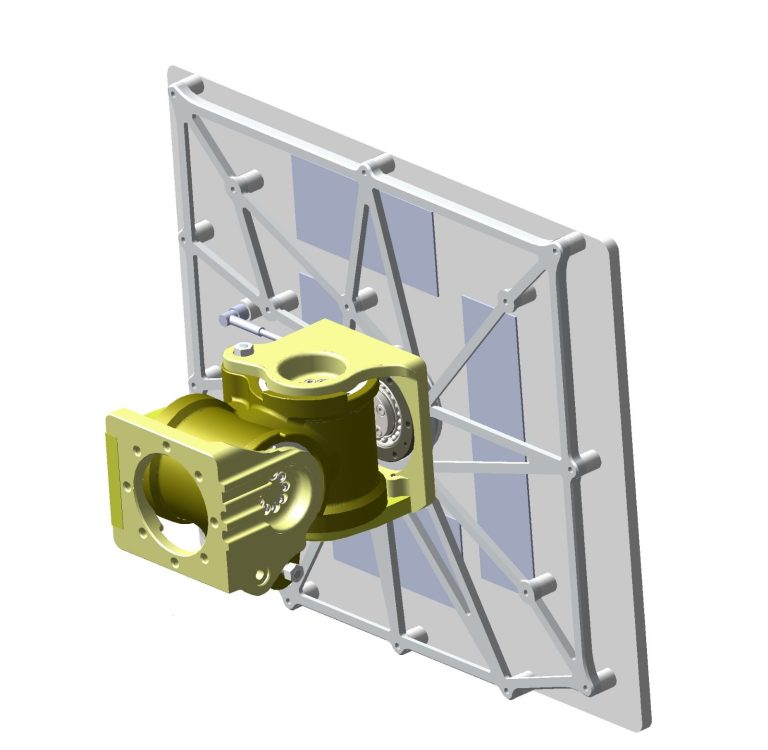

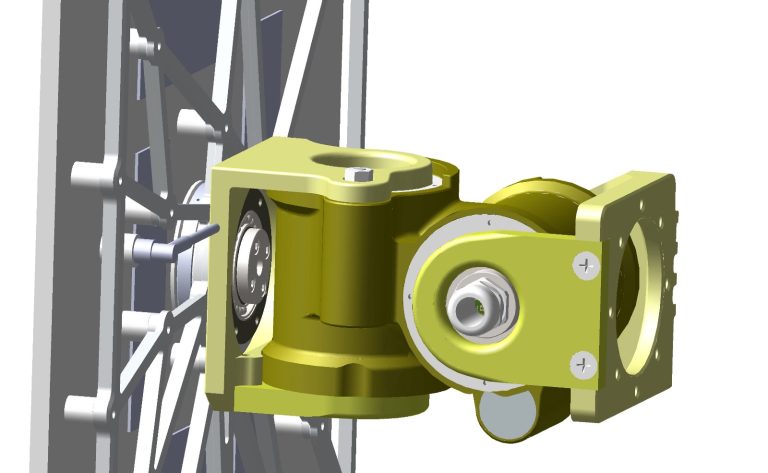

  • 2-axis antenna positioner for Panasonic Aviation
  • Tested to DO-160 by the FAA
  • Low profile for top of commercial aircraft (wideband internet)
  • First 100 units manufactured in-house
  • 9000+ manufactured to-date
  • Slip ring cabling
  • 360° rotation
  • 0.1-degree accuracy,
  • 4096 count resolution
  • Dual encoder technology
  • MTBF of 50,000 hours (10 years) in atmosphere

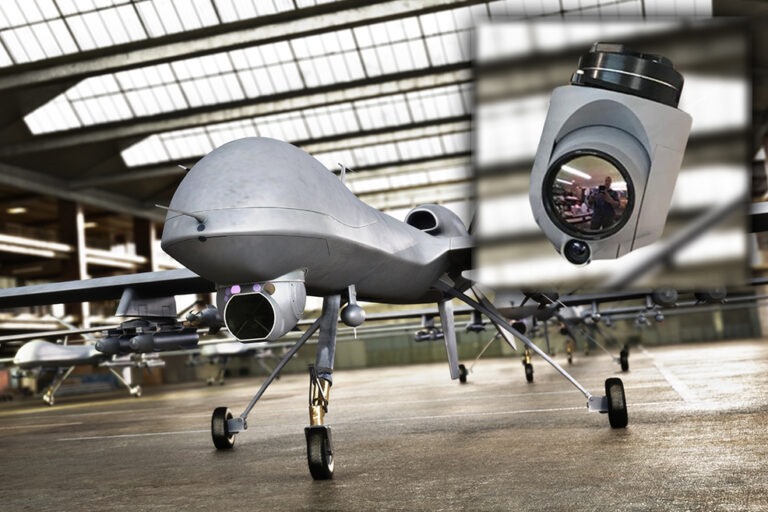

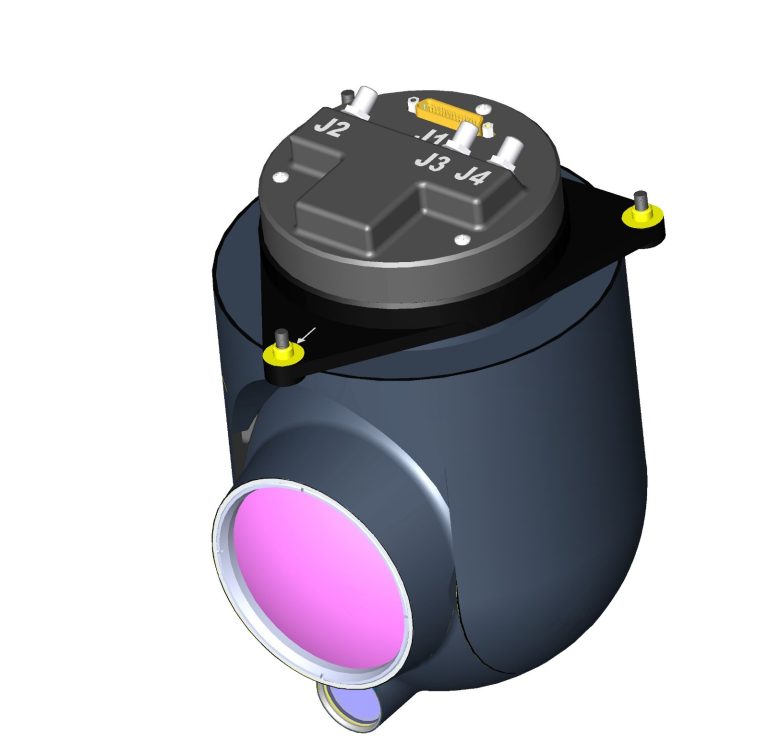

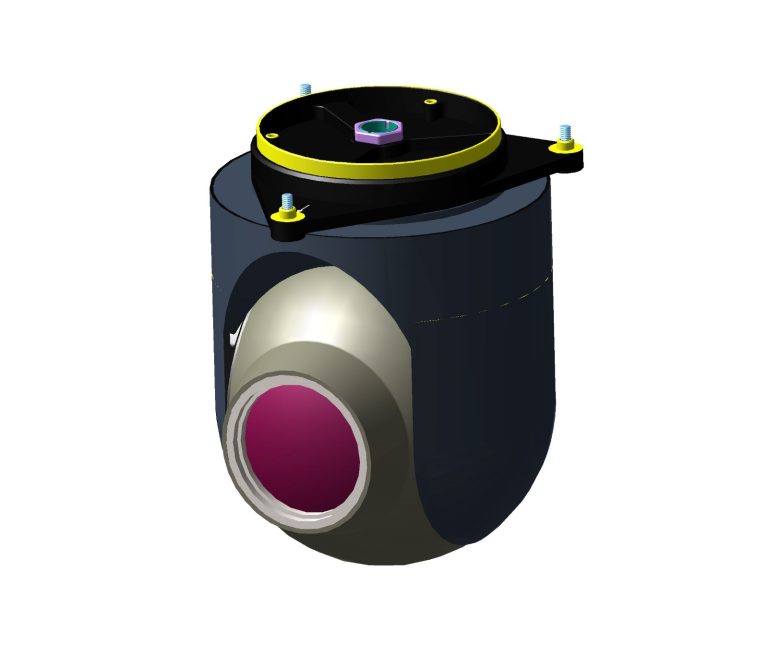

  • Ultra-high precision thermal imager • 1.1kg, 146 mm diameter
  • 0.4 milliradian accuracy
  • 2-axis stabilization
  • Made from only 4 components •
  • Manufactured 6 in house
  • 2-axis T-type gimbal for 40kg camera with stabilization
  • 0.01 deg accuracy
  • 360° pan
  • +30°/-80° tilt
  • Rotational speed 1000 deg/second • Acceleration 1000 deg/second2
  • Defense application
  • LiDAR designed for Maxon Motors
  • 10,000 RPM
  • Brushless motor
  • Continuous operation 24/7 for 5 years without performance reduction
  • Passed temp, vibe, EMI testing
  • Drivetrain with planetary gearbox for autonomous electric dispatch truck. 536 hp output.
  • Linear actuator for electric truck steering system. 210mm stroke length at 100 mm/s, 5000N.
  • Both designed for high volume manufacture, first 50 made in-house.

Compact Telescoping Arms

  • Developed large-scale telescoping, carbon fiber boom arm.
  • 50kg capacity with 7m to 21m stroke length.
  • Approach enabled 1-week design of compact telescoping arm for lunar
    payload (VR camera) deployment (in work).



Rovers:

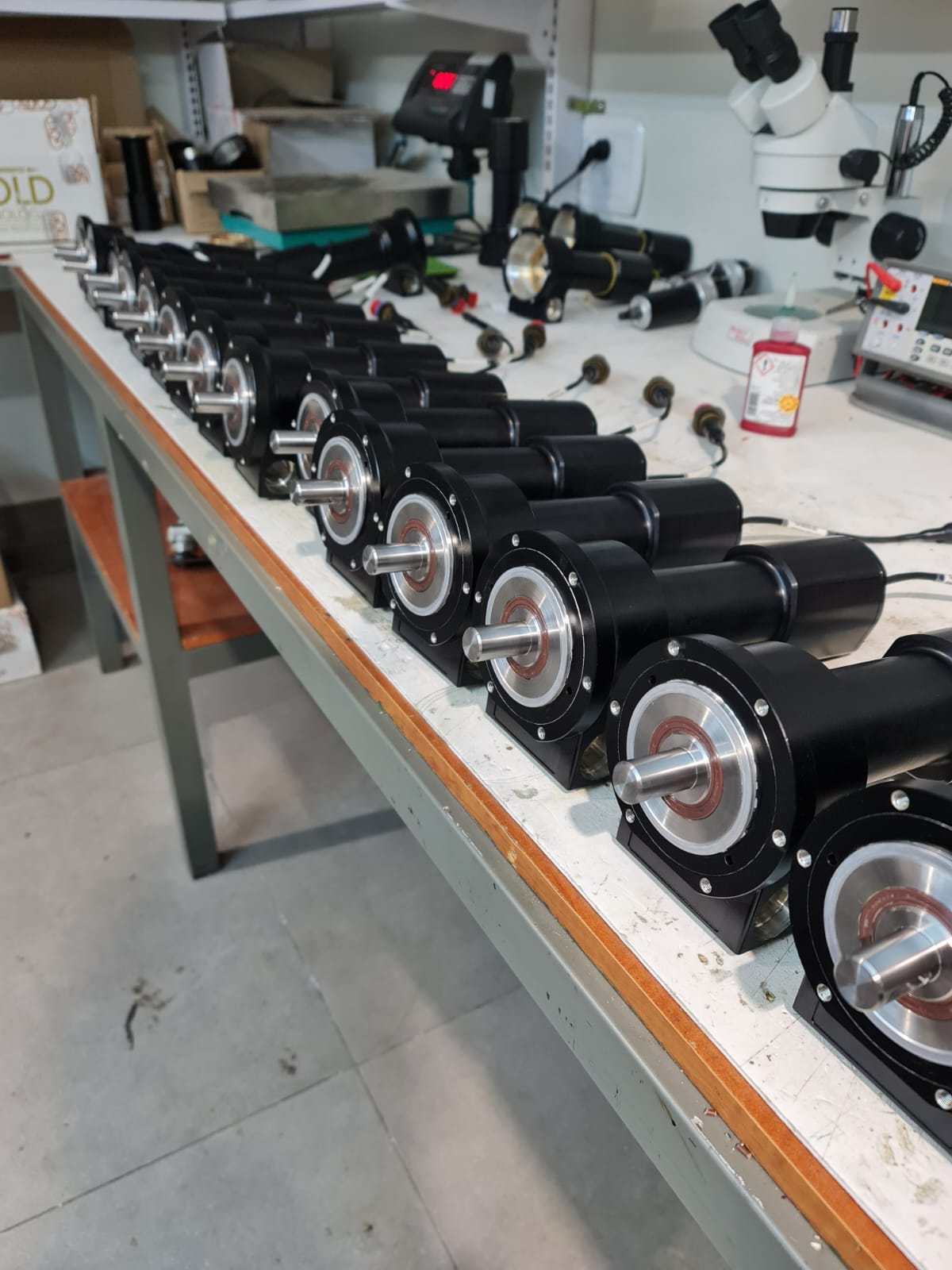

  • 8 of the same motors per platform (2/wheel) for 360° all-wheel steering
  • Built for Intel warehousing application
  • 600x400x500mm • 16 kg payload capacity
  • 2-DOF ultra-high precision telescope pointing device
    with 0.2 milliradian accuracy
  • Drivetrain for large-scale deployment mechanism with
    manual overdrive capability in case of power outage

30+ mechanism and component patents including:

  • Optics: lenses, rain deflectors
  • Drivetrains: gear inside instead motor assembly, zero backlash ball gear drivetrain
  • Other: self-cleaning endoscope, fast-deploying tripod, energy-harvesting mechanisms
